EQUIPMENT MAX THICKNESS & CAPABILITIES

CNC Tube Bending

0 – 180 degree bending

2 1 /2″ .083 wall of mild steel

2 1 /2″ .065 wall of stainless steel
2″ .065 wall of squaretube

1 1 /2″ SCH 40 of pipe
20 foot max length

CNC Tube/pipe and Angle Rolling

2 1 /2″ SCH 40 Pipe

2 3/8″x 2 3/8″x 1/4″ Angle leg
3″ .095 wall round tube

3″x 1″ .120 wall Rectangle Tube
2 1 /2″ .180 wall Square Tube

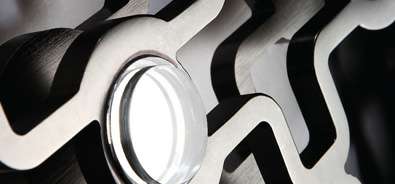

CNC Plate cutting

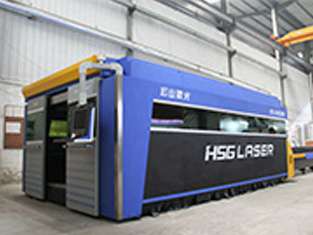

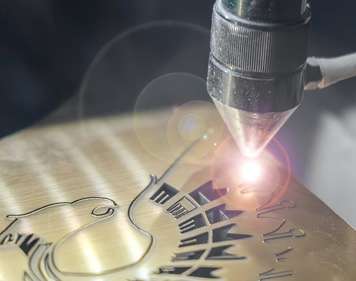

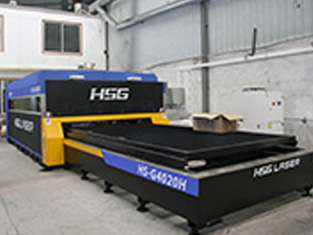

Laser – max thickness = 1″
Plasma – max thickness = 1″
Oxy Fuel – max thickness = 1″

CNC Ornamental Scroll curling

3/8″x 1-3/16 Flat Bar
5/8″x 5/8″ Square bar
5/8″ Hot Roll

Complex Mitre Tube Notching

4″ any wall thickness

Rechtangle Natcher

3″x 5″x 3/8″ Plate
3″x 4″x 1 /2″ Plate

90 Degree V-notching

6″x6″x5/16″

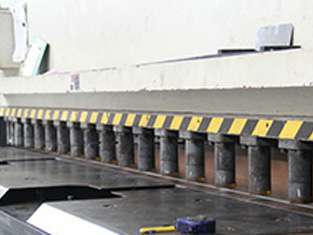

Plate Flat Bar Shear

1 “x8”

Hydrualic Metal Punching

1 3/16″ hole in 1″ plate

4″ hole diameter
Square Punches

Hex Punches

Round Punches

Oval Punches
